a.Size ranges:
Min Diameter: 6.35 mm
Max Diameter: 219 mm
b.Length: 2- 6 m
c. Material: H80 / H90/C26000/C27000/C27200/C22000
d. Standard: GB/T 5231-2001 ASTM B111 DIN1785
Technical Property
|
Grade |
Tensile Strength (MPa) |
Elongation (%) |
Hot working temper |
Annealing temper |
Hardness (HV) |
Density (g/cm3) |
|
H59 C28000 C2801 |
≥294 |
≥25 |
730 ~ 820 ℃ |
600 ~ 670 ℃ |
|
8.5 |
|
H62 C27400 C2720 |
410-630 |
≥10 |
|
|
105-175 |
8.5 |
|
H65 C27000 C2680 |
≥390 |
≥40 |
|
|
|
8.5 |
|
H68 C26200 C2620 |
≥660 |
≥15 |
750 ~ 830 ℃ |
520 ~ 650 ℃ |
|
8.5 |
|
H80 C24000 C2400 |
≥275 |
≥45 |
820 ~870 ℃ |
600 ~700 ℃ |
|
|
|
H90 C22000 C2200 |
330-440 |
≥5 |
850 ~950 ℃ |
650 ~ 720 ℃ |
|
|

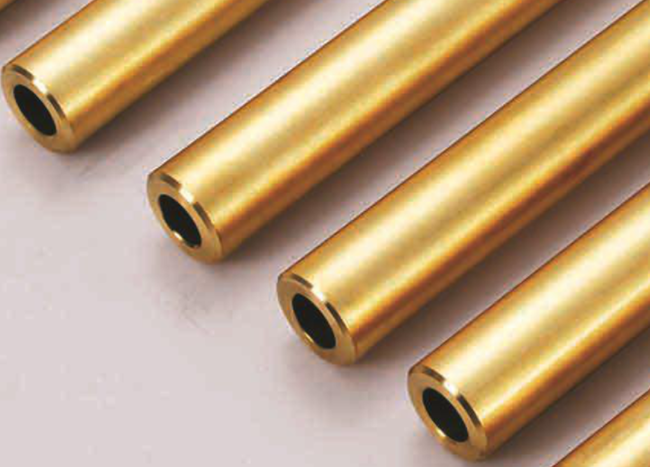

Name: H80/H90 Brass pipe tube
Sharp: Round
Material: H80 / H90/C22000/C23000/C26000/C27000/C27200
Usages: precision instruments, ship parts, gun casings, vessel and construction ,etc
