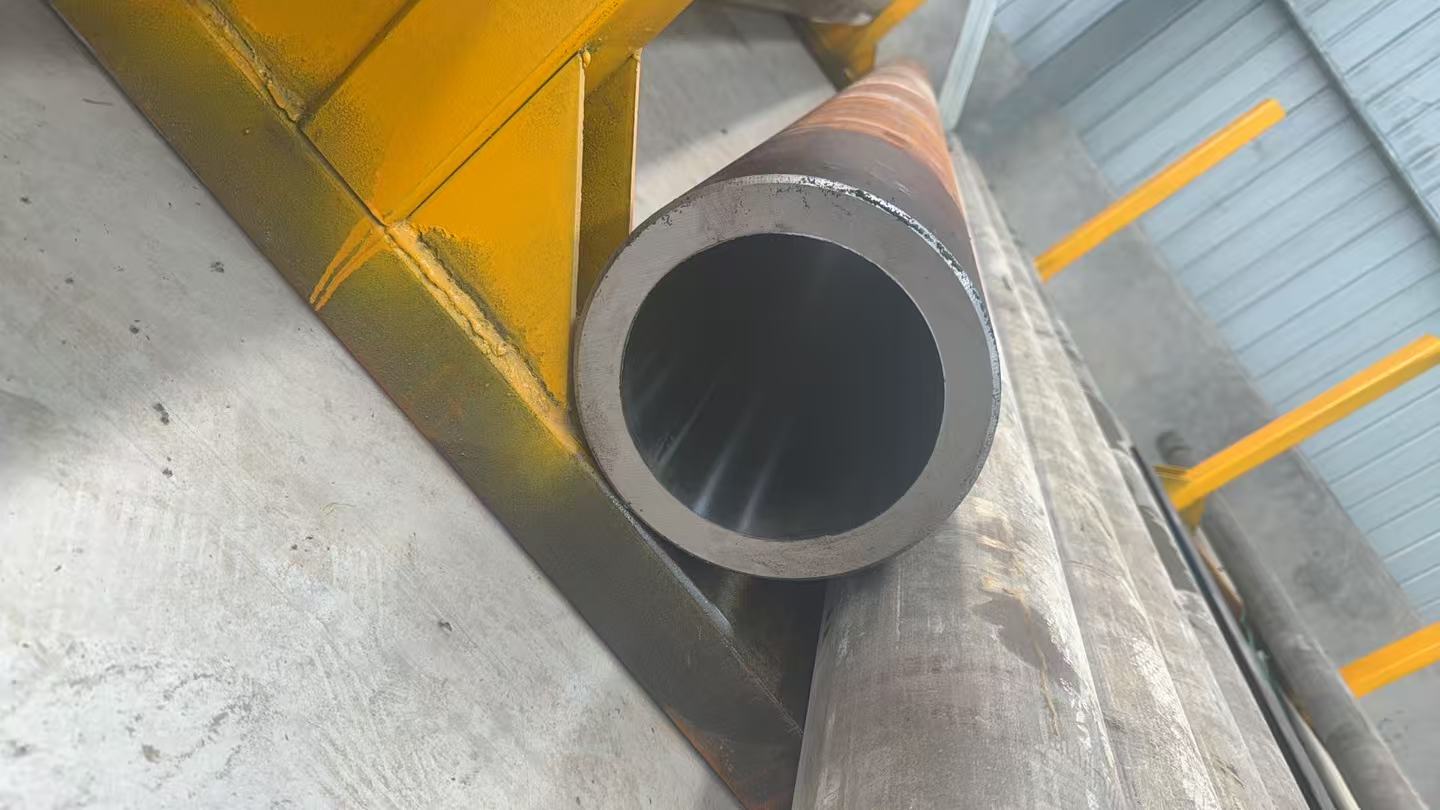

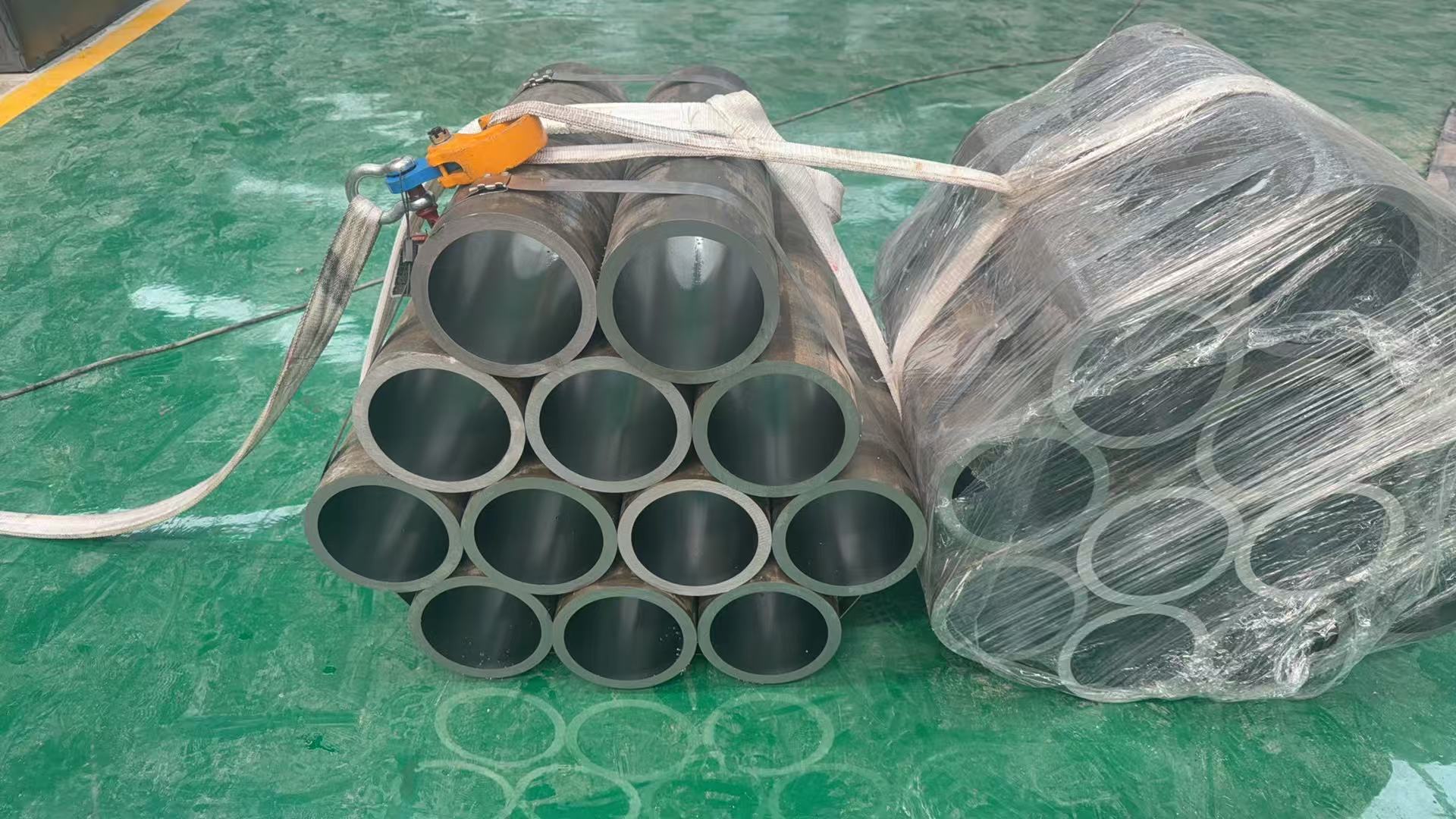

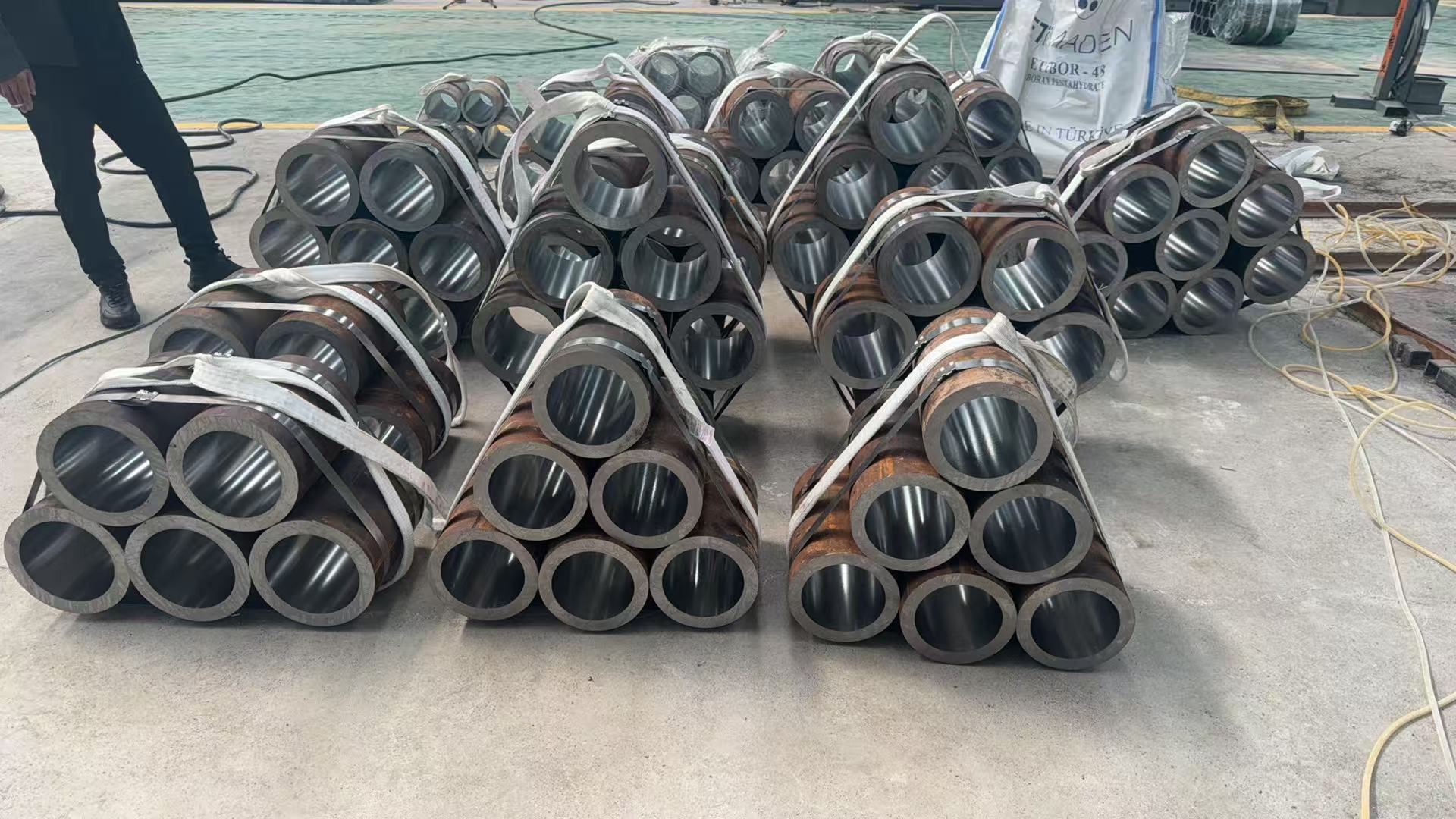

Honed Tube / Hydraulic Cylinder Tube
Description:
Common Materials
-
CK45 / 1045 (45#): General hydraulic cylinders
-
E355 / ST52 (16Mn, 25Mn): High‑pressure cylinders
-
4130, 4140: Ultra‑high pressure & heavy‑duty
-
304, 316 Stainless Steel: Corrosive environments
parameters
Key Specifications
Standards
-
EN 10305‑1, DIN 2391, ASTM A513, A519, GB/T 3639
Typical Size Range
-
Outside Diameter (OD): 25 mm – 300 mm
-
Inside Diameter (ID): 20 mm – 280 mm
-
Wall Thickness (WT): 2.5 mm – 20 mm
-
Length: 3 m, 6 m (custom length available)
Tolerance & Surface Finish
-
ID Tolerance: H7, H8, H9
-
Surface Roughness (ID): Ra 0.2 – 0.8 μm (standard Ra ≤ 0.4 μm)
-
High roundness and straightness
-
introduction
Surface Processes
-
Honing: Precision internal grinding for smooth finish
-
Skiving & Roller Burnishing (SRB): High efficiency, denser surface
Applications
-
Hydraulic cylinder barrels
-
Pneumatic cylinder barrels
-
Precision mechanical sleeves
-
High‑pressure hydraulic systems
