a.Size ranges:
Min Diameter: 8mm
Max Diameter:219 mm
b.Length: 1-6m/customize
c. Material: C10100C12200C11000......
Chemical Composition
C10100------ASTM B68,ASTM B170,ASTM B111 / B111M
|
C10100 |
Elements |
|||||||||
|
Cu |
Pb |
Zn |
Fe |
P |
Ag |
As |
O |
Sb |
Te |
|
|
Min(%) |
99.99 |
|
|
|
|
|
|
|
|
|
|
Max(%) |
|
0.0005 |
0.0001 |
0.0010 |
0.0003 |
0.0025 |
0.0005 |
0.0005 |
0.0004 |
0.0002 |
|
(1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS.
(2) Cu is determined by the difference between the impurity total and 100 %. For alloy C10100 the Cu value is exclusive of Ag.
(3) The following additional impurity maximum limits shall apply: Bi 1ppm (0.0001%); Cd 1ppm (0.0001%); Mn 0.5ppm (0.00005%); Ni 10ppm (0.0010%); Se 3ppm (0.0003%); S 15ppm (0.0015%); Sn 2ppm (0.0002).
|
||||||||||
C12200------ASTM B68,ASTM B152,ASTM B111 / B111M,ASTM B170
|
C12200 |
Elements |
|||||||||
|
Cu |
Pb |
Zn |
Fe |
P |
Ag |
As |
O |
Sb |
Te |
|
|
Min(%) |
99.9 |
|
|
|
0.015 |
|
|
|
|
|
|
Max(%) |
|
|
|
|
0.04 |
|
|
|
|
|
|
1) This includes oxygen-free Cu which contains P in an amount agreed upon.
(2) Cu value includes Ag.
|
||||||||||
C11000------ASTM B187,ASTM B152,ASTM B188
|
C11000 |
Elements |
|||||||||
|
Cu |
Pb |
Zn |
Fe |
P |
Ag |
As |
O |
Sb |
Te |
|
|
Min(%) |
99.9 |
|
|
|
|
|
|
|
|
|
|
Max(%) |
|
|
|
|
|
|
|
|
|
|
|
(1) Oxygen and trace elements may vary depending on the process.
(2) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS.
(3) Cu value includes Ag.
|
||||||||||
Mechanical Properties
C10100 TUBE
Temper
Temper Code
Tensile Strength
C12200
TUBE
Temper
Temper Code
Tensile Strength
C11000 TUBE
Temper
Temper Code
Tensile Strength
Hard
H04
50 Typ
Hard Drawn
H80
55 Typ
Hard Drawn
H80
55 Typ
Hard Drawn
H80
55 Typ
Light Drawn, Light Cold Rolled
H55
40 Typ
Light Drawn, Light Cold Rolled
H55
40 Typ
Light Drawn, Light Cold Rolled
H55
40 Typ
(ksi)
(ksi)
(ksi)

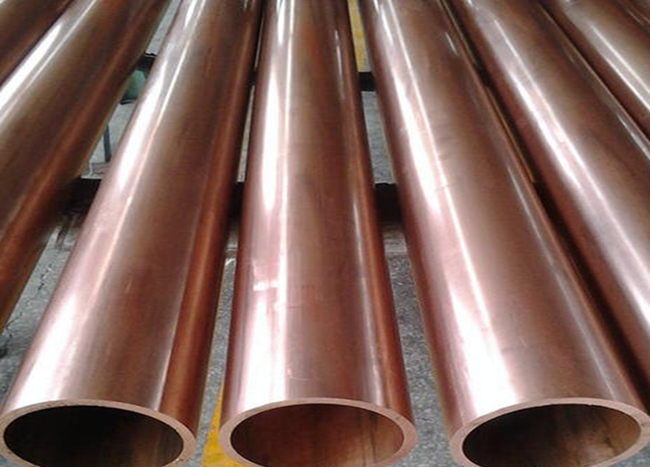

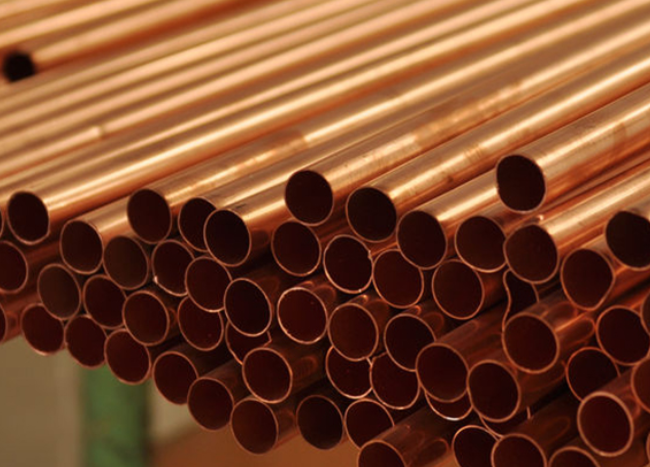

Copper Straight Tube Mainly Used In Air Conditioning Refrigerator Refrigeration.Water Supply,Computer Cooling,Electromagnetic Microwavesolar Energy Utilization,Medical Facilities.Shipbuilding
Available Grades: Red Copper: T2, Tp2, C10200, C12200; Oxygen-Free Copper: Tu0, Tu1, Tu2, And Other Series.
