a.Size ranges:
Min. Diameter: 3/16" (4.76mm)
Max. Diameter: 7/8" (22.22mm)
b.Lengths: Standard available lengths are 15m, 30m, 50FT
Size Range:
|
Actual Copper Tube Size |
Weight |
Safe Working Pressure (kPa) |
||
|
metric (mm) |
imperial (inches) |
50ºC |
75ºC |
|
|
6.35 x 0.56 |
1/4" x 24swg |
0.091 |
7,069 |
5,862 |
|
6.35 x 0.61 |
1/4" x 23swg |
0.098 |
7,760 |
6,435 |
|
6.35 x 0.71 |
1/4" x 22swg |
0.113 |
9,175 |
7,608 |
|
6.35 x 0.81 |
1/4" x 21swg |
0.126 |
10,635 |
8,819 |
|
9.52 x 0.56 |
3/8" x 24swg |
0.141 |
4,584 |
3,801 |
|
9.52 x 0.61 |
3/8" x 23swg |
0.153 |
5,018 |
4,161 |
|
9.52 x 0.71 |
3/8" x 22swg |
0.176 |
5,900 |
4,893 |
|
9.52 x 0.81 |
3/8" x 21swg |
0.198 |
6,800 |
5,639 |
|
12.70 x 0.56 |
1/2" x 24swg |
0.191 |
3,389 |
2,810 |
|
12.70 x 0.61 |
1/2" x 23swg |
0.207 |
3,705 |
3,072 |
|
12.70 x 0.71 |
1/2" x 22swg |
0.239 |
4,344 |
3,603 |
|
12.70 x 0.81 |
1/2" x 21swg |
0.271 |
4,994 |
4,141 |
|
15.88 x 0.56 |
5/8" x 24swg |
0.241 |
2,688 |
2,229 |
|
15.88 x 0.61 |
5/8" x 23swg |
0.262 |
2,936 |
2,435 |
|
15.88 x 0.71 |
5/8" x 22swg |
0.303 |
3,438 |
2,851 |
|
15.88 x 0.81 |
5/8" x 21swg |
0.343 |
3,945 |
3,270 |
|
15.88 x 0.91 |
5/8" x 20swg |
0.383 |
4,459 |
3,698 |
|
15.88 x 1.02 |
5/8" x 19swg |
0.426 |
5,031 |
4,172 |
|
19.05 x 0.56 |
3/4" x 24swg |
0.291 |
2,228 |
1,848 |
|
19.05 x 0.71 |
3/4" x 22swg |
0.336 |
2,846 |
2,360 |
|
19.05 x 0.91 |
3/4" x 20swg |
0.464 |
3,684 |
3,055 |
|
19.05 x 1.14 |
3/4" x 0.045" |
0.574 |
4,668 |
3,871 |
|
22.22 x 0.91 |
7/8" x 20swg |
0.545 |
3,138 |
2,602 |
|
22.22 x 1.14 |
7/8" x 0.045" |
0.675 |
3,970 |
3,292 |
|
22.22 x 1.40 |
7/8" x 0.055" |
0.819 |
4,929 |
4,088 |
Material : C11000, C12200, T2, TP2, TU2
Usages: installation of air conditioning and refrigeration systems
Cu: min 99.90%

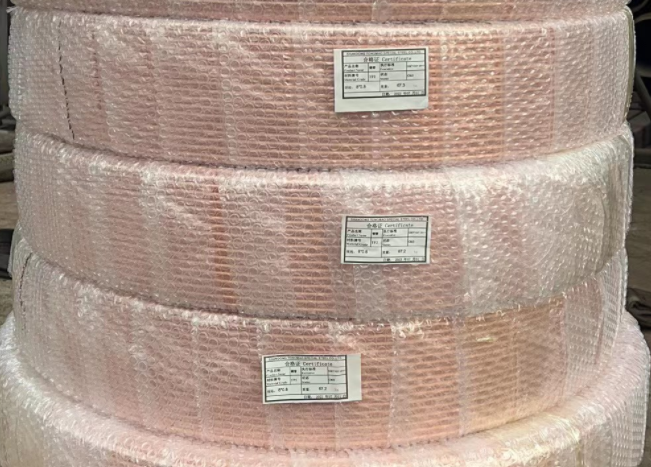

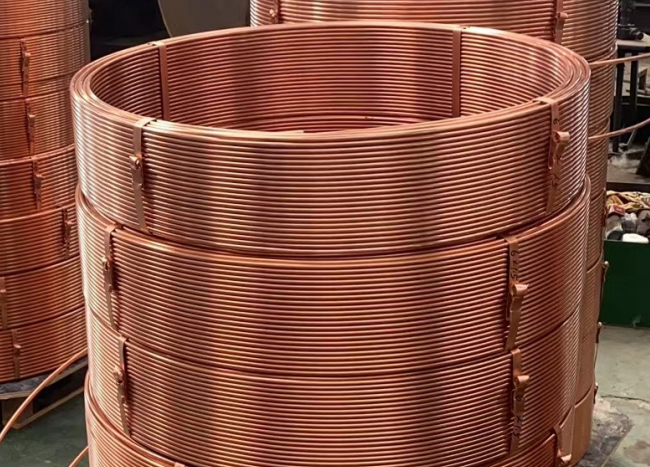

Packing: Coils are capped with plastic end caps, carton packing or plywood boxes
Standard: ASTM B 280 / EN 12735-1 and ASTM B68 and all relevant international standards
