Precision seamless steel pipe

  • Seamless Steel Hydraulic Cylinder Tube
  • Seamless Steel Hydraulic Cylinder Tube

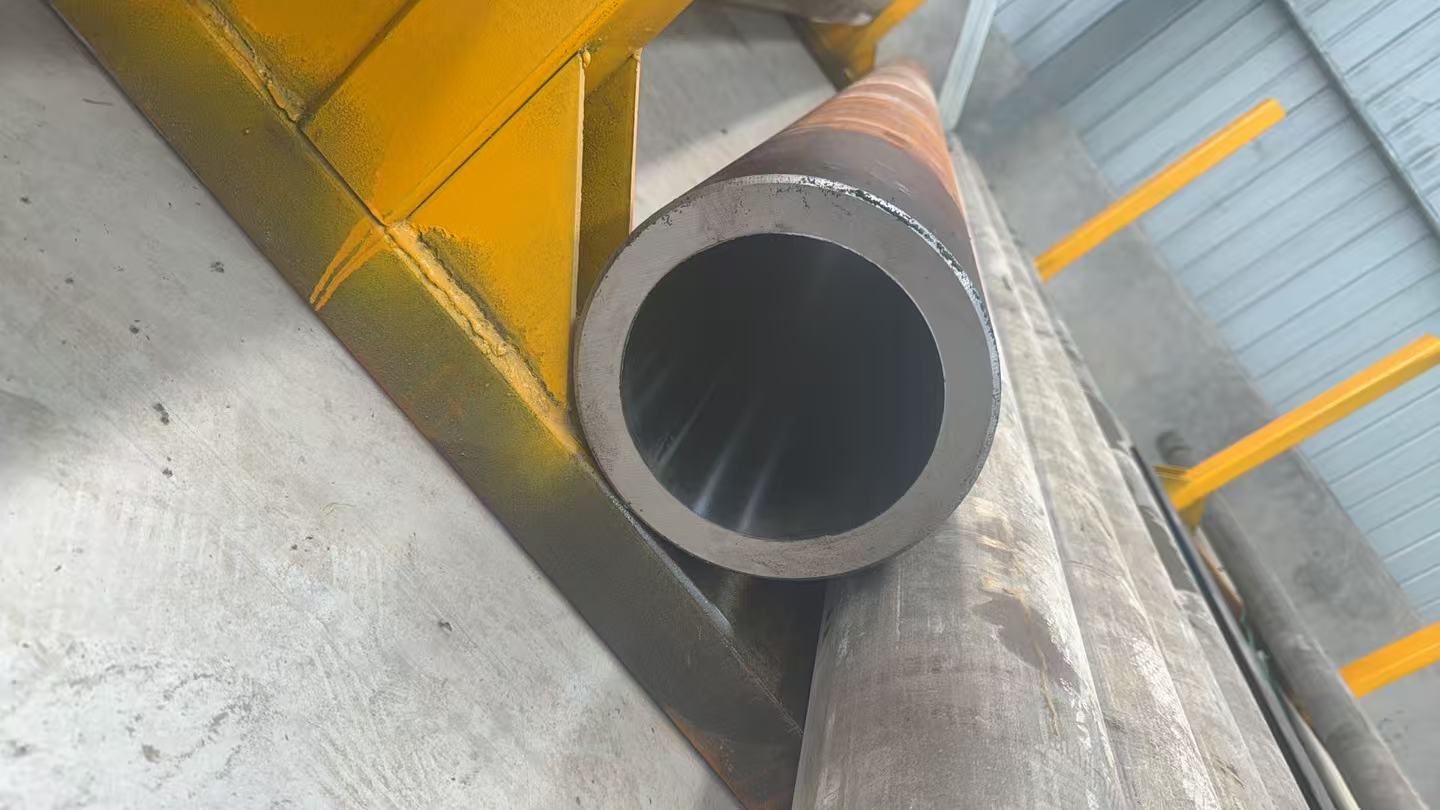

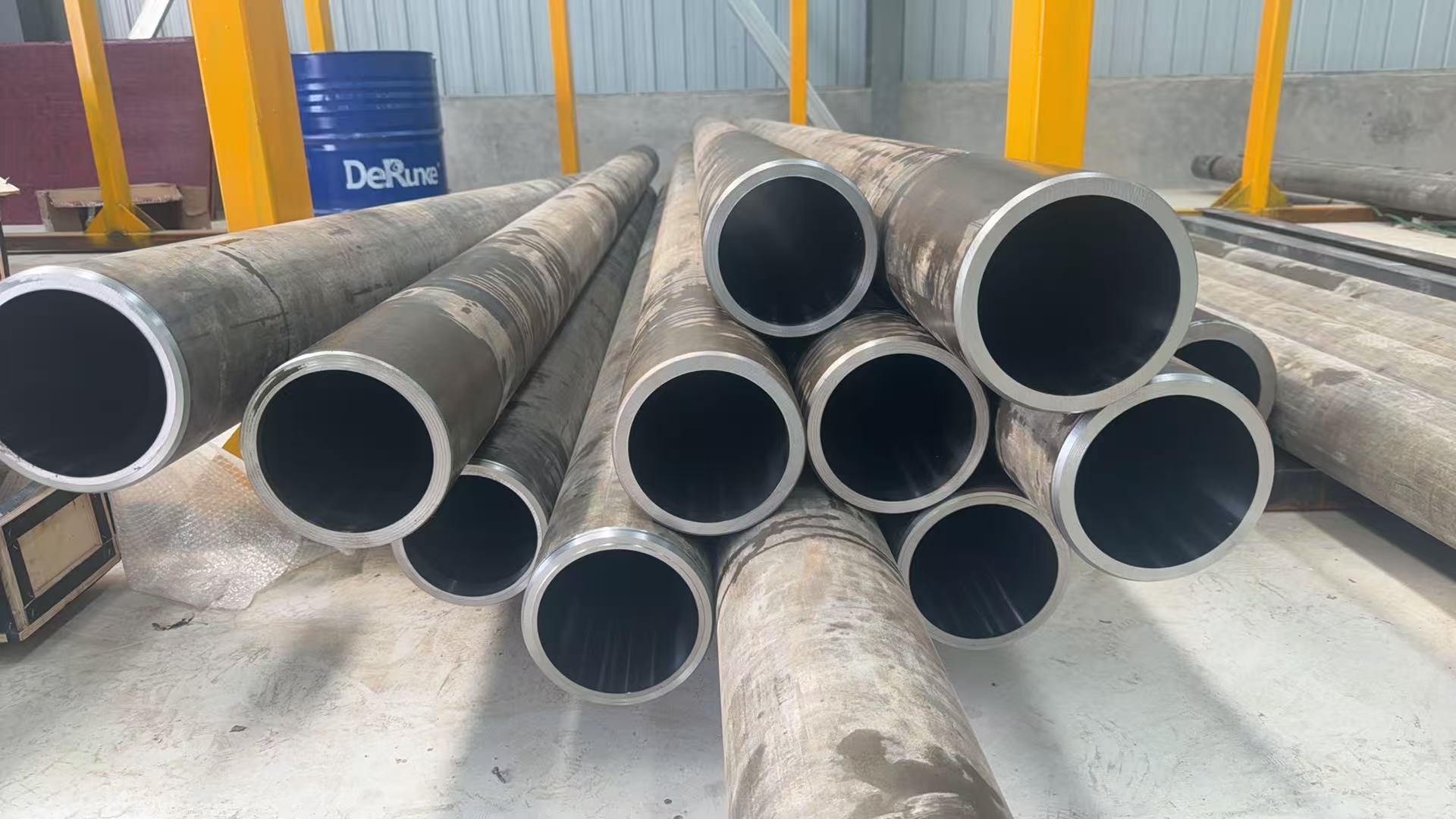

Seamless Steel Hydraulic Cylinder Tube

Description:
The raw materials for these hydraulic steel tubes undergo precision drawing, non-oxidizing bright heat treatment (NBK condition), and non-destructive testing. The inner bores of the tubes are subjected to high-pressure flushing and pickling, while both the inner and outer surfaces are treated with rust-inhibiting oil; the tube ends are capped to prevent dust ingress. The resulting steel tubes feature high precision and excellent surface finish, with the complete absence of oxide layers on both their inner and outer walls. These tubes are capable of withstanding the high pressures associated with fluid flow; furthermore, they resist deformation during cold bending and can be flared or flattened without cracking. In terms of mechanical properties, the tubes can be bent at any angle without sustaining permanent deformation.

parameters

Hydraulic Cylinder Honing Tube
Inside Dia
(mm)
ID Tolerance (mm)
WT Tolerance
(mm)
H7
H8
H9
H10
≤30
+0.021/0
+0.033/0
+0.052/0
+0.084/0
±7.5%
>210mm ±10%
30 - ≤50
+0.025/0
+0.039/0
+0.062/0
+0.100/0
50 - ≤80
+0.030/0
+0.046/0
+0.074/0
+0.120/0
80 - ≤120
+0.035/0
+0.054/0
+0.087/0
+0.140/0
120 - ≤180
+0.040/0
+0.063/0
+0.100/0
+0.160/0
180 - ≤250
+0.046/0
+0.072/0
+0.115/0
+0.185/0
250 - ≤315
+0.052/0
+0.081/0
+0.130/0
+0.210/0
315 - ≤700
+0.057/0
+0.089/0
+0.140/0
+0.230/0

introduction

Our Material
Material No.
Similar International Grade
Suitable for…
JIS G3445 STKM13C
ASTM MT1020 / BS ERWC3 / DIN ST45 / NF TU37b / ISO TS4
Carbon steel tubes for machine structural purpose
DIN 2391 ST52
1.0580
JIS STKM19A / ASTM 1524 / EN E355 / ISO TS18
Mechanical and automotive engineering
ST52 BK+S
1.0580
Low deformability without heat treatment after cold forming process and stress-relief annealing
DIN 2393 ST52.3
1.0570
ISO Gr.1
Construction of chemical plant, pipe work and mechanical engineering use,
ASTM A106
1.0405
JIS STPT410 / BS HFS410 / DIN ST45.8 / NF TU42c
Seamless carbon steel pipe for high temperature service
Suitable for bending, flanging, welding and similar forming operations
