BACKNickel copper tube

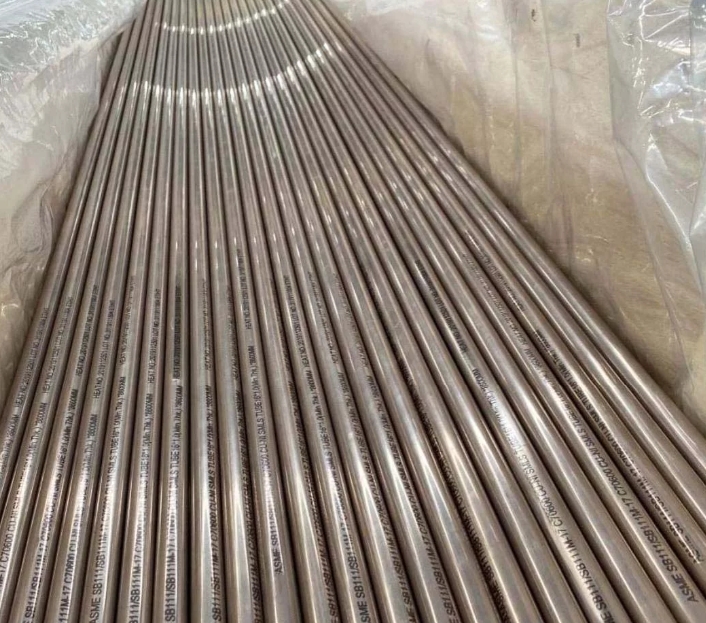

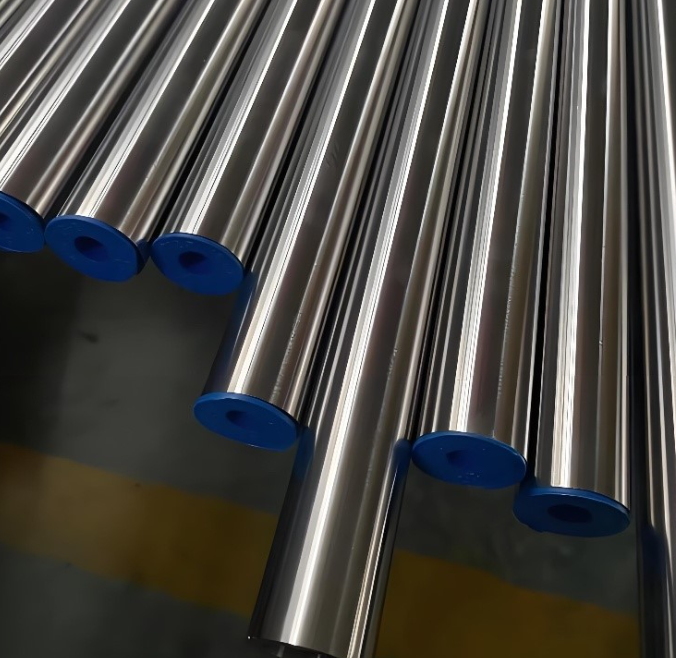

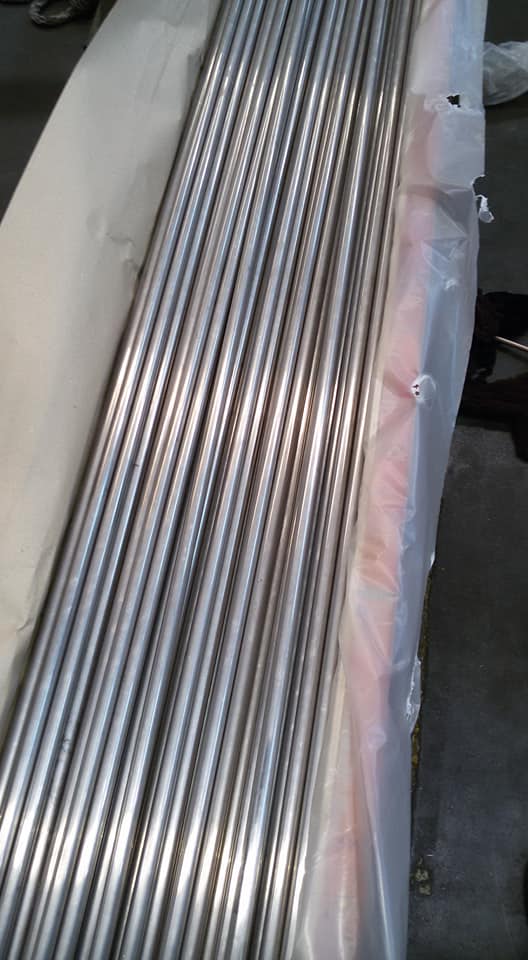

c71500 nickel copper tube
Description:
|
Element
|
Cu
|
Ni+Co
|
Fe
|
Mn
|
Pb
|
S
|
Total Impurities
|
|
Content (wt%)
|
Balance
|
29.0 – 33.0
|
0.4 – 0.7
|
0.5 – 1.0
|
≤ 0.05
|
≤ 0.02
|
≤ 0.5
|
parameters
Standard Specifications & Dimensions
Product Standards
-
Seamless Tubes: ASTM B111 / ASME SB111
-
Welded Tubes: ASTM B466 / ASME SB466
-
Chinese Standard: GB/T 8890 (BFe30-1-1)
-
European Equivalent: CW354H (CuNi30Mn1Fe)
-
|
Parameter
|
Standard Range
|
Common Inch Equivalent
|
|
Outer Diameter (OD)
|
4 mm – 219 mm
|
1/4" – 8.625"
|
|
Wall Thickness (WT)
|
0.5 mm – 10 mm
|
0.020" – 0.394"
|
|
Standard Lengths
|
2,000 mm – 12,000 mm
|
2m, 6m, 9m, 12m
|
Common Stock Sizes (OD × WT, mm)
-
19 × 1.2
-
25 × 1.5
-
32 × 2.0
-
38 × 2.5
-
45 × 3.0
-
57 × 3.5
-
76 × 4.0
-
89 × 4.5
-
108 × 5.0
introduction
Key Properties
-
Corrosion Resistance
-
Superior seawater resistance: Corrosion rate < 0.025 mm/year in flowing seawater.
-
Excellent resistance to pitting, crevice corrosion, stress corrosion cracking (SCC), and erosion-corrosion in high-velocity chloride environments.
-
Natural antifouling properties to resist marine organism attachment.
-
Physical Properties
-
Density: 8.94 g/cm³
-
Melting Point: 1170 – 1240 °C
-
Thermal Conductivity: ~ 29 W/(m·K)
-
Electrical Conductivity: 3 – 5% IACS
-
Mechanical Properties (Annealed/O61 Temper)
-
Tensile Strength: ≥ 380 MPa
-
Yield Strength: ≥ 210 MPa
-
Elongation: ≥ 30%
-
Hardness: 85 – 120 HV
